              Sargent 80 Series

              SARGENT manufactures a full line of exit devices providing the best combination of simplicity, strength, durability, aesthetics and innovation.

              • Maintenance-free design
              • Easy installation, quick retrofit
              • Made of the finest component materials
              • Non-handed available
              • Multiple through-bolt options
              • Keying accomplished without removing device from door
              • Designs
              • Specifications
              • Trim
              • Options
              • Functions
              • Finishes
              • Downloads

              8300 Series





              Close

              8300 Series

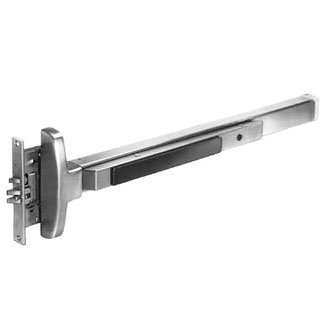

              The SARGENT 8300 Series Exit Device is a narrow design, push rail style, mortise lock exit device.

              8500 Series





              Close

              8500 Series

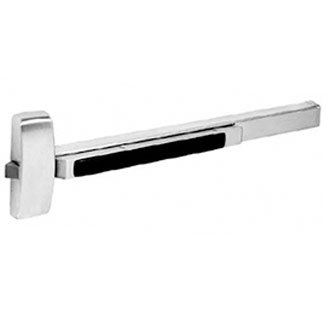

              The 8500 Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security.

              8700 Series





              Close

              8700 Series

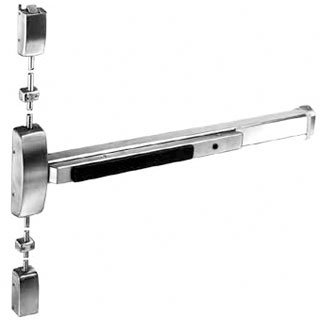

              The SARGENT 8700 Surface Vertical Rod Exit Device has two point latching (top and bottom of the door) and is adjustable through the center case.

              8800 Series





              Close

              8800 Series

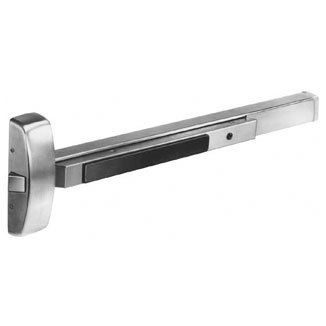

              The 8800 series is designed for standard width stile applications on wood and metal doors. This reversible rim exit device sets the industry standard for durability and reliability.

              8888 Series





              Close

              8888 Series

              The 8888 is designed for standard width stile applications on wood and metal doors, and has 7 functions determined by the trim function.

              8900 Series





              Close

              8900 Series

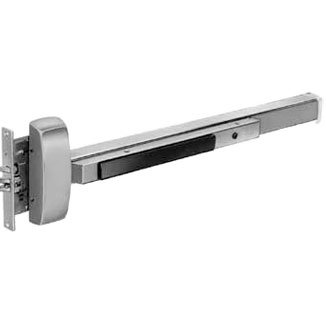

              8900 Mortise Lock Exit Device has concealed single point guarded latching for additional security and is designed for standard width stile applications on wood and metal doors.

              HC8800 Series





              Close

              HC8800 Series

              The HC8800 device is designed for standard width stile applications on metal doors

              Studio Collection - levers





              Close

              Studio Collection - levers

              Choose from Aventura, Centro, Gramercy, Notting Hill, Odeon, Rialto designs

              (Designer Hardware > Architectural Levers > Sargent)

              Coastal Series - levers





              Close

              Coastal Series - levers

              Choose from Coronado, Gulfport (Handed), Rockport (O/S Trim), Sanibel (O/S Trim), Yarmouth (O/S Trim)

              A - lever





              Close

              A - lever

              (Handed)

              B - lever





              Close

              B - lever

              E - lever





              Close

              E - lever

              F - lever





              Close

              F - lever

              J - lever





              Close

              J - lever

              L - lever





              Close

              L - lever

              P - lever





              Close

              P - lever

              W - lever





              Close

              W - lever

              862 - pull





              Close

              862 - pull

              1" diameter; 4" x 10"

              88 - lever & rose





              Close

              88 - lever & rose

              Non-handed; through-
              bolted to chassis

              Specify L, B, J or P lever

              Shown: LB Trim
              (L Rose, B Lever)

              Auxiliary Control





              Close

              Auxiliary Control

              (306/313 shown)

              ET Lever Control





              Close

              ET Lever Control

              Specify lever

              FLL - pull





              Close

              FLL - pull

              (04 function shown)

              FLW - pull





              Close

              FLW - pull

              (10 function shown)

              MAL/MSL - pull





              Close

              MAL/MSL - pull

              (63/66 functions shown)

              PTB/PSB - pull





              Close

              PTB/PSB - pull

              (04 function shown)

              STS - pull





              Close

              STS - pull

              (04 function shown)

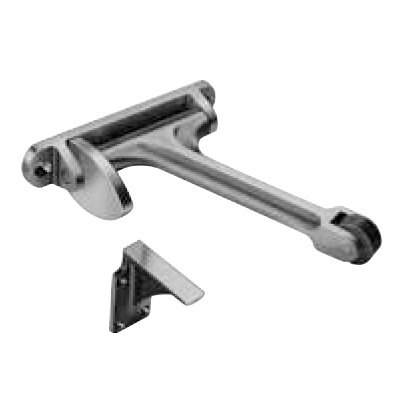

              3487 - door coordinator kit





              Close

              3487 - door coordinator kit

              Prevents active door from closing before inactive door closes

              For pairs of doors with outside astragal

              Specify finish

              53 - latch bolt monitoring





              Close

              53 - latch bolt monitoring

              Tamper-resistant latch monitoring

              Switch activated when rail is depressed, or movement of latch

              56 - ELR





              Close

              56 - ELR

              Electric Latch Retraction

              Field serviceable, modular design

              Digital retraction timer

              ATV - plate with extended lip





              Close

              ATV - plate with extended lip

              Anti-Vandal Trim

              Extra security for exterior doors

              12 ga stainless steel, thru-bolted

              Specify handing

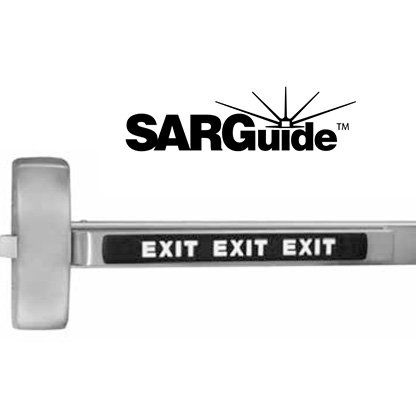

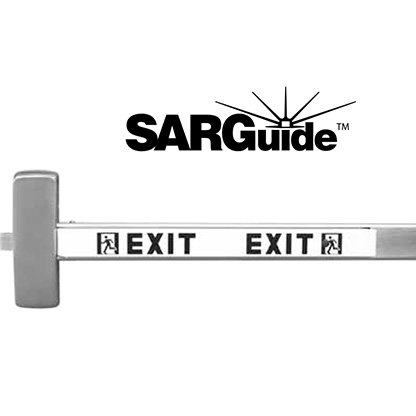

              PL - photoluminescent





              Close

              PL - photoluminescent

              (Non-electrified)

              Recharges from ambient light

              Fits all door widths

              TL - electroluminescent





              Close

              TL - electroluminescent

              ElectroLynx® 4-pin connector

              Requires 24VDC power supply

              Minimum 26" door width

              04 - night latch





              Close

              04 - night latch

              Key retracts latchbolt

              #41 cylinder supplied

              06 - locked trim





              Close

              06 - locked trim

              Key unlocks trim;
              trim retracts

              Latch/trim relocks when key is removed

              #41 cylinder supplied

              10 - no cylinder





              Close

              10 - no cylinder

              No outside operation

              (No cylinder)

              10 - no cylinder, pull only





              Close

              10 - no cylinder, pull only

              No outside operation
              (no cylinder)

              ET Control used as Pull Only

              13 - locked trim





              Close

              13 - locked trim

              Key outside unlocks/locks trim

              #41 cylinder supplied

              15 - passage only





              Close

              15 - passage only

              (No cylinder)

              16 - freewheeling lever





              Close

              16 - freewheeling lever

              Key outside retracts latchbolt

              Key inside locks or unlocks lever

              28 - passage only





              Close

              28 - passage only

              (No cylinder)

              40 - dummy trim





              Close

              40 - dummy trim

              Freewheeling trim

              No outside operation

              (No cylinder)

              43 - keyed trim





              Close

              43 - keyed trim

              Freewheeling trim

              Key outside unlocks/locks trim

              44 - keyed trim





              Close

              44 - keyed trim

              Freewheeling trim

              Key retracts latch

              46 - keyed trim





              Close

              46 - keyed trim

              Freewheeling trim

              Key unlocks trim

              Trim retracts latch; relocks when key is removed

              62 - locked trim





              Close

              62 - locked trim

              Key unlocks trim; trim retracts latch/trim

              Relocks when key is removed

              63 - locked trim





              Close

              63 - locked trim

              Key outside unlocks/locks trim

              66 - keyed latch





              Close

              66 - keyed latch

              Key outside retracts latch

              Key inside unlocks/locks O/S trim

              70 - electrified lock





              Close

              70 - electrified lock

              Electrified Mortise Lock

              Power off, unlocks thumbpiece

              Key retracts latch

              73 - fail safe





              Close

              73 - fail safe

              Electrified ET Trim

              Fail safe, power off, unlocks lever

              (No cylinder)

              74 - fail secure





              Close

              74 - fail secure

              Electrified ET Trim

              Fail Secure, power off, locks lever

              (No cylinder)

              75 - fail safe





              Close

              75 - fail safe

              Electrified ET Trim - Fail Safe

              Power off, unlocks lever, key retracts latch

              76 - fail secure





              Close

              76 - fail secure

              Electrified ET Trim - Fail Secure

              Power off, locks lever, key retracts latch

              03 - Bright Brass





              Close

              03 - Bright Brass

              Clear coated (BHMA 605)

              04 - Satin Brass





              Close

              04 - Satin Brass

              Clear coated (BHMA 606)

              09 - Bright Bronze





              Close

              09 - Bright Bronze

              Clear coated (BHMA 611)

              10 - Satin Bronze





              Close

              10 - Satin Bronze

              Clear coated (BHMA 612)

              10B - Dark Oxidized Satin Bronze





              Close

              10B - Dark Oxidized Satin Bronze

              Oil rubbed (BHMA 613)

              10BL - Dark Oxidized Satin Bronze





              Close

              10BL - Dark Oxidized Satin Bronze

              Clear Coated (BHMA 614)

              14 - Bright Nickel





              Close

              14 - Bright Nickel

              Clear coated (BHMA 618)

              15 - Satin Nickel





              Close

              15 - Satin Nickel

              Clear coated (BHMA 619)

              20D - Statuary Dark Bronze





              Close

              20D - Statuary Dark Bronze

              Laquered (BHMA 624)

              26 - Bright Chrome





              Close

              26 - Bright Chrome

              Plated (BHMA 625)

              26D - Satin Chrome





              Close

              26D - Satin Chrome

              Plated (BHMA 626)

              32 - Bright Stainless Steel





              Close

              32 - Bright Stainless Steel

              Plated (BHMA 629)

              32D - Satin Stainless Steel





              Close

              32D - Satin Stainless Steel

              Plated (BHMA 630)
