              Sargent 30 Series

              Rugged exit device

              Easy installation and maintenance

              Tapered push rail and angled covers

              Available in four different functions with various trim selections

              • Designs
              • Specifications
              • Trim
              • Functions
              • Finishes
              • Downloads

              Sargent 3727





              Close

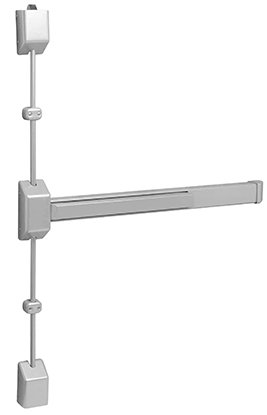

              Sargent 3727

              Surface Vertical Rod Exit Device

              The 3727 is a rugged exit device in surface vertical rod and rim designs. It has 6 functions, 4 available trim designs and is easy to mix and match device and trim.

              Sargent 3828





              Close

              Sargent 3828

              Multi-Function Rim Exit Device

              The 3828 is a rugged exit device in a rim design and has 7 functions, 4 available trims and is easy to mix and match the device and trim.

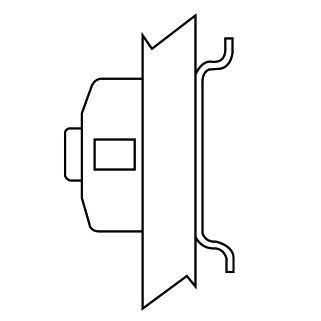

              TP





              Close

              TP

              1-3/4" door only

              04 function not available

              E-GTB - plate





              Close

              E-GTB - plate

              D-GTB - finger grip pull





              Close

              D-GTB - finger grip pull

              K-HTB - finger grip pull





              Close

              K-HTB - finger grip pull

              B - lever





              Close

              B - lever

              L - lever





              Close

              L - lever

              P - lever





              Close

              P - lever

              L - rose





              Close

              L - rose

              OB - knob





              Close

              OB - knob

              O Rose, B Knob

              04 function not available

              04 night latch - 28-K-LL





              Close

              04 night latch - 28-K-LL

              Key in lever retracts latchbolt

              (2828 or 3838 only)

              04 night latch - 28-K-OB





              Close

              04 night latch - 28-K-OB

              Key in knob retracts latchbolt

              04 night latch - 814-HTB





              Close

              04 night latch - 814-HTB

              Outside by pull and key

              (2828 or 3838 only)

              06 night latch - 28-N-LL





              Close

              06 night latch - 28-N-LL

              Lever operates only when key is in cylinder and turned

              10 dummy - 28-D-LL





              Close

              10 dummy - 28-D-LL

              Outside pull when push bar is locked down

              10 exit only - 802-GTB





              Close

              10 exit only - 802-GTB

              Blank plate to cover 161 cutout

              10 exit only with pull - 810-GTB





              Close

              10 exit only with pull - 810-GTB

              Outside pull when push bar is locked down

              13 entrance - 28-C-LL





              Close

              13 entrance - 28-C-LL

              Key in lever, locks or unlocks lever

              13 entrance - 28-C-OB





              Close

              13 entrance - 28-C-OB

              Key in knob, locks or unlocks knob

              15 passage - 28-L-LL





              Close

              15 passage - 28-L-LL

              Latchbolt operated by lever

              15 passage - 28-L-OB





              Close

              15 passage - 28-L-OB

              Latchbolt operated by knob

              03 - Bright Brass





              Close

              03 - Bright Brass

              Clear coated (BHMA 605)

              04 - Satin Brass





              Close

              04 - Satin Brass

              Clear coated (BHMA 606)

              10 - Satin Bronze





              Close

              10 - Satin Bronze

              Clear coated (BHMA 612)

              10B - Dark Oxidized Satin Bronze





              Close

              10B - Dark Oxidized Satin Bronze

              Oil rubbed (BHMA 613)

              20D - Statuary Dark Bronze





              Close

              20D - Statuary Dark Bronze

              Laquered (BHMA 624)

              26D - Satin Chrome





              Close

              26D - Satin Chrome

              Plated (BHMA 626)

              EAB - Brass





              Close

              EAB - Brass

              Sprayed Brass Enamel (BHMA 696)

              EB - Bronze (brown)





              Close

              EB - Bronze (brown)

              Sprayed Bronze Enamel to match 10B (BHMA 690)

              ED - Bronze (black)





              Close

              ED - Bronze (black)

              Sprayed Bronze Enamel to match 20D (BHMA 693)

              EN - Aluminum





              Close

              EN - Aluminum

              Sprayed Aluminum Enamel (BHMA 689)

              EP - Bronze (copper)





              Close

              EP - Bronze (copper)

              Sprayed Bronze Enamel to match 10 (BHMA 691)
