LCN 4040XP Series

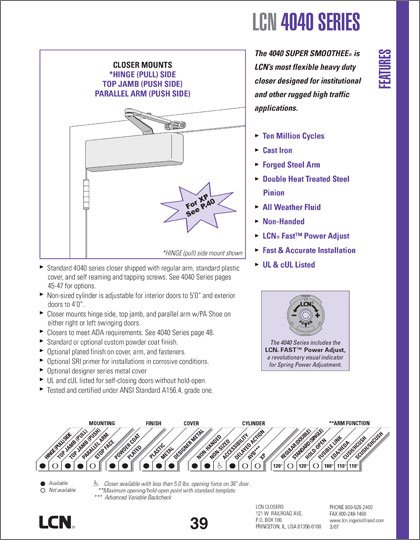

Specifications

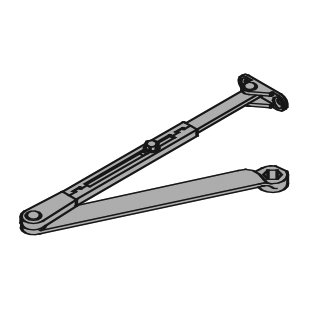

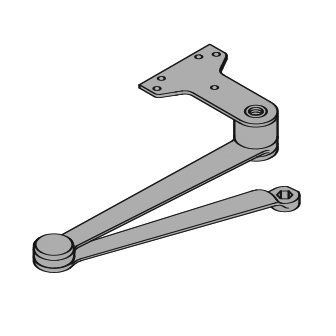

• Standard 4040 series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws.
• Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”.
• Closer mounts hinge side, top jamb, and parallel arm w/PA Shoe on either right or left swinging doors.

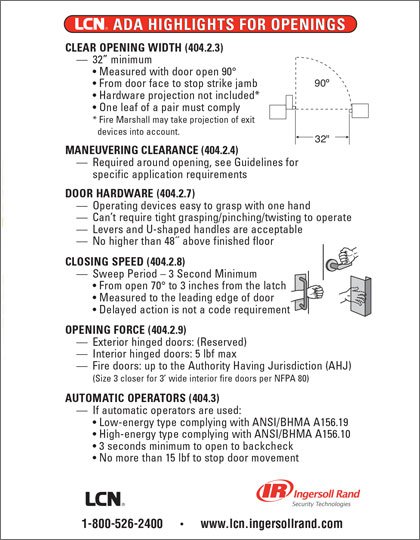

• Closers to meet ADA requirements.
• Standard or optional custom powder coat finish.
• Optional plated finish on cover, arm, and fasteners.
• Optional SRI primer for installations in corrosive conditions.

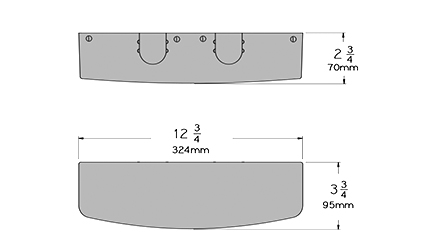

• Optional designer series metal cover.
• UL and cUL listed for self-closing doors without hold-open.
• Tested and certified under ANSI Standard A156.4, grade 1.

Mounting Details

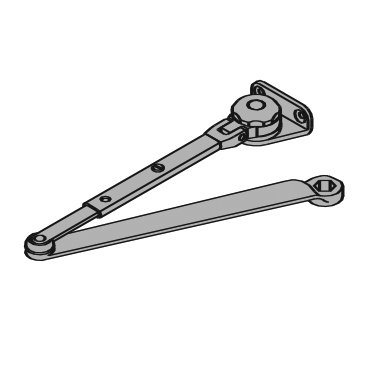

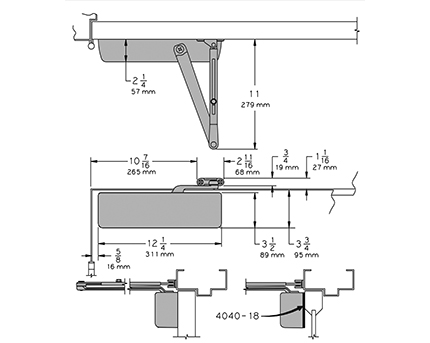

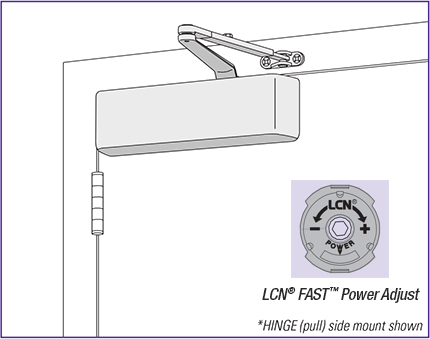

HINGE (PULL) SIDE:Maximum opening templating allows up to 120°: Hold-open points 90° up to 120° with hold-open arm.

• Butt Hinges should not exceed 5” (127 mm) in width.
• Auxiliary Stop is recommended at hold-open point or where a door cannot swing beyond 120°.
• Reveal should not exceed 3/4” (19 mm) for regular arm or
  hold-open arm.
• Top Rail less than 3-3/4” (95 mm) requires PLATE 4040-18.
• Plate requires 2” (51 mm) minimum; with Designer Series metal cover, use PLATE 4040-18DS1.
• Clearance of 2-3/8” (60 mm) behind door required for 90° installation; 2-7/8” (73 mm) for Designer Series metal covers.
• Delayed Action (not available on 4040XP) Add suffix “DEL” to selected cylinder (eg. 4041 DEL). Delays closing from 120° to 70°. Delay time adjustable up to approximately one minute.

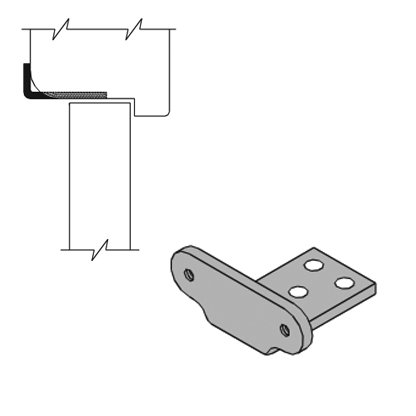

• Bull Nose Trim requires SOFFIT SHOE 4040-65.

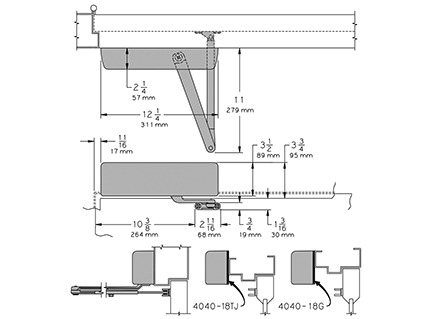

TOP JAMB (PUSH SIDE): Maximum opening templating allows up to 120°: Hold-open points 85° up to 120° with hold-open arm.

• Butt Hinges should not exceed 5” (127 mm) in width.
• Auxiliary Stop is recommended at hold-open point or where the door cannot swing 120°.
• Reveal of 2-9/16” (65 mm) allows 120° opening for REGULAR ARM or standard HOLD-OPEN ARM. 4-13/16” (122 mm) allows up to 120° opening with LONG ARM where standard rod and shoe is replaced with optional LONG ROD AND SHOE 4040-79LR. Use H-LONG ARM with LONG HEAD AND TUBE 4040-78HL for hold-open. 8” (203 mm) allows up to 120° opening with EXTRA LONG ARM where standard rod and shoe is replaced with optional EXTRA LONG ROD AND SHOE 4040-79ELR.
• Top Rail requires 1-1/4" (32 mm) minimum. 2 1/4" (57 mm) minimum with closer on PLATE 4040-18TJ. 3" (76 mm) minimum with closer on PLATE 4040-18G. With Designer Series metal cover, use PLATE 4040-18TJDS1.
• Head Frame less than 3-1/2” (89 mm) requires PLATE 4040-18TJ.
  With flush ceiling, use PLATE 4040-18G. Either plate requires 1-3/4”
  (44 mm) minimum.
• Delayed Action (not available on 4040XP) Add suffix “DEL” to selected cylinder (eg. 4041 DEL). Delays closing from 120° to 80°. Delay time adjustable up to approximately one minute.

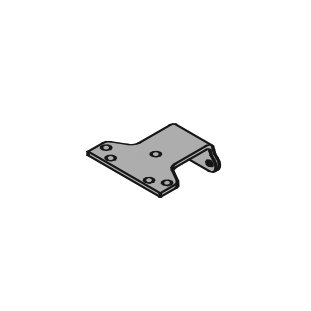

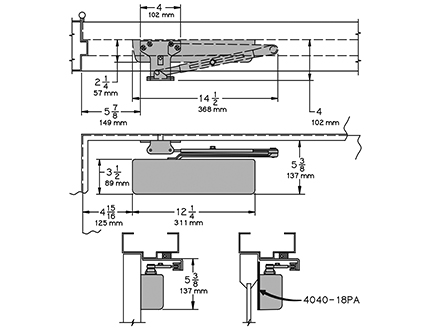

PARALLEL ARM (PUSH SIDE): Optional mounting requires PA SHOE,
4040-62PA for REGULAR or HOLDOPEN arms. Add prefix "P" to closer description (eg. P4041). P4041 closer includes 4040-201 FIFTH HOLE SPACER to support PA SHOE. Maximum opening 180°: opening/hold-open points with all except CUSH arms. 110° opening/hold-open with CUSH arms.

• Butt Hinges should not exceed 5” (127 mm) in width.
• Auxiliary Stop is recommended at hold-open point, where the door cannot swing 180°, or where CUSH-N-STOP arm is not used.
• Clearance for 4040-62PA shoe is 4” (102 mm) from door face.
  EDA shoe projects 5-1/2” (140 mm) from door face. CUSH shoe projects 6” (152 mm) from door face.
• Top Rail less than 5-3/8” (137 mm) measured from the stop requires PLATE, 4040-18PA. Plate requires 2” (51 mm) minimum from the stop. With Designer Series metal cover, use PLATE, 4040-18PADS1.
• Head Frame flush or rabetted requires PA SHOE ADAPTER, 4040-418.
• Stop Width minimum 1” (25 mm). CUSH arm requires minimum
  1-1/2” (38 mm).
• Blade Stop clearance requires 1/2" (13mm) BLADE STOP SPACER, 4040-61.
• Delayed Action (not available on 4040XP) Add suffix “DEL” to selected cylinder (eg. P4041 DEL). Delays time adjustable up to approximately one minute.

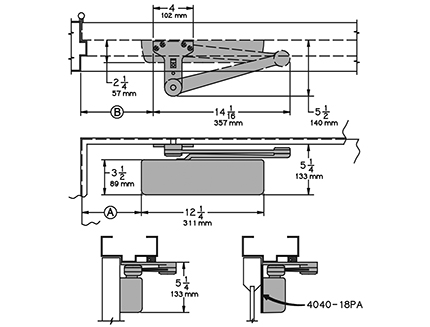

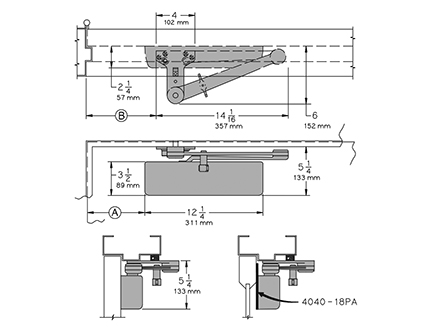

EDA or CUSH MOUNT: EDA or CUSH arms include 4040-201 FIFTH HOLE SPACER to support the shoe. Maximum opening EDA arm can be templated for points at 110°: A = 6 3/8” (162 mm); B = 7 3/4” (197 mm). Maximum opening to 180°: A = 2 7/8” (73 mm); B = 4 1/4” (108 mm). Hold-open points up to maximum opening with HEDA arm. CUSH arms can be templated for opening/hold-open point at 85°: A = 7 15/16” (202 mm); B = 9 1/8” (232 mm). Maximum opening to 90°: A = 7 3/16” (183 mm); B = 8 1/2” (216 mm).  Maximum opening to 100°: A = 6 1/16” (154 mm); B = 7 1/4” (184 mm). Maximum opening to 110°: A = 5 1/16” (129 mm); B = 6 3/8” (162 mm). Spring Cush dead stop points are approximately 5° more than templated stop point. Hold open at templated stop points.

• Clearance for 4040-62EDA is 5-1/2” (140 mm) from door face. 6” (152 mm) for CUSH.
• Head Frame flush or rabetted requires CUSH FLUSH PANEL ADAPTER, 4040-419.
• CUSH ARM requires SHOE SUPPORT, 4040-30 for fifth screw anchorage for narrow frames.
• Delayed Action (not available on 4040XP) Add suffix “DEL” to selected cylinder (eg. 4041 DEL). Delays closing from maximum opening to; 115° with 180° template. 95° with 110° template. 85° with 100° template. 75° with 90° template. Delay time adjustable up to approximately one minute.

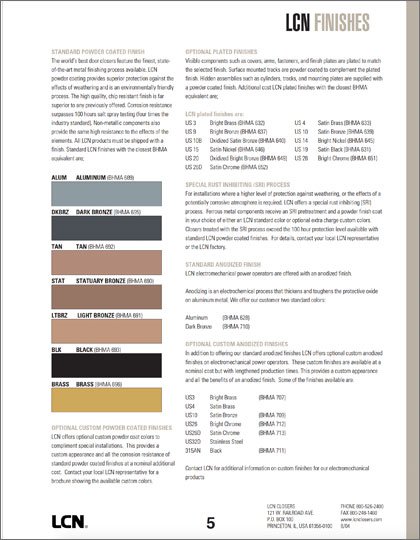

LCN Finishes

STANDARD POWDER COATED FINISH: LCN door closers feature the finest, state-of-the-art metal finishing process available. LCN powder coating provides superior protection against the effects of weathering and is an environmentally friendly process. The high quality, chip resistant finish is far superior to any previously offered. Corrosion resistance surpasses 100 hours salt spray testing (four times the industry standard). Non-metallic components also provide the same high resistance to the effects of the elements. All LCN products must be shipped with a finish.

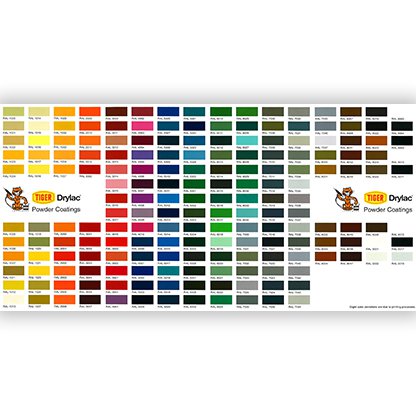

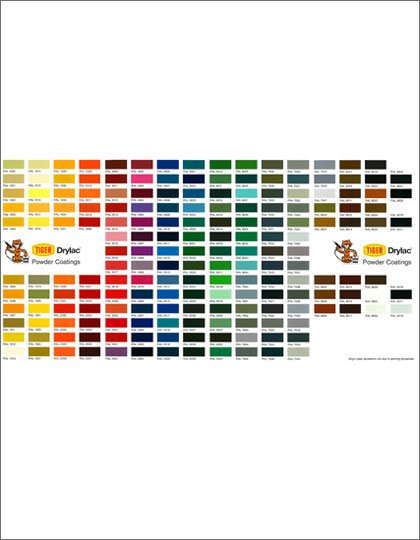

OPTIONAL CUSTOM POWDER COATED FINISHES: LCN offers optional custom powder coat colors to compliment special installations. This provides a custom appearance and all the corrosion resistance of standard powder coated finishes at a nominal additional cost. See Downloads tab for available custom colors.

OPTIONAL PLATED FINISHES: Visible components such as covers, arms, fasteners, and finish plates are plated to match the selected finish. Surface mounted tracks are powder coated to complement the plated finish. Hidden assemblies such as cylinders, tracks, and mounting plates are supplied with a powder coated finish.

SPECIAL RUST INHIBITING (SRI) PROCESS: For installations where a higher level of protection against weathering, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a powder finish coat in your choice of either an LCN standard color or optional extra charge custom colors. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated finishes.
