Basic
Steel Slab | Wood Frame
Madero's Basic door system combines a 24 gauge high definition steel slab with a wood frame, providing an economical and steadfast solution for commercial and residential exterior applications.
This unit features high definition embossing, insulating polyurethane foam core (100% CFC-free), paintable primed surfaces, and the strength of internal wood blocking.
Choose from twelve door designs in three standard widths; available in 6'8" height only.
- Designs
- Specifications
- Options
- Downloads
6'8" - 4 Lite External
6'8" - 4 Lite External
Standard widths:
2/8, 2/10 and 3/0
6'8" - 9 Lite Internal
6'8" - 9 Lite Internal
Standard widths:
2/8, 2/10 and 3/0
6'8" - Bristol
6'8" - Bristol
Privacy rating = 7
Classic style
Standard widths:
2/8, 2/10 and 3/0
6'8" - Dual Clear Low-E
6'8" - Dual Clear Low-E
Standard widths:
2/8, 2/10 and 3/0
6'8" - Estate
6'8" - Estate
Privacy rating = 5
Classic style
Standard widths:
2/8, 2/10 and 3/0
6'8" - Mini-Blinds
6'8" - Mini-Blinds
Triple-glazed construction
Standard widths:
2/8, 2/10 and 3/0
6'8" - Nouveau
6'8" - Nouveau
Privacy rating = 6
Classic style
Standard widths:
2/8, 2/10 and 3/0
6'8" - Pear
6'8" - Pear
Privacy rating = 9
Classic style
Standard widths:
2/8, 2/10 and 3/0
6'8" - Simplicity
6'8" - Simplicity
Privacy rating = 8
Contemporary style
Standard widths:
2/8, 2/10 and 3/0
6'8" - Vent
6'8" - Vent
Removable screen
Standard widths:
2/8, 2/10 and 3/0
Basic Door System Specifications
The 90-minute fire rated steel door combined with a primed wood frame makes this unit suitable for:
- One and two family dwellings
- Low-rise multifamily dwellings, low-rise professional offices, libraries and low-rise motels
- Lighter use industrial buildings and factories, hotels, and retail sales buildings
Primed High Definition Steel Door
Material: 24 gauge high definition steel slab with 10" wood lock block.
Size: 6'8" height only; 2'8", 2'10" and 3'0" widths.
Core: 100% CFC-free Polyurethane foam injected, for an excellent R rating.
Slab Finishing: Primed bright white.
Glazing: See Designs tab for factory-installed glass options.
Basic Wood Frame
Features: Primed, kiln-dried pine wood stiles and top rail, composite bottom rail.
Material: Prehung in primed wood frame with white weatherstrip, white corner pad, quality sill, vinyl shoe, and zinc ball bearing hinges.
Jamb Width: 4-9/16" (2x4) or 6-9/16" (2x6). Left hand or right hand application for inswing or outswing.
Preparation: Default single drill; optional double drill.
Brickmould: Kiln dried, 2” 180 step fingerjointed primed pine attached.

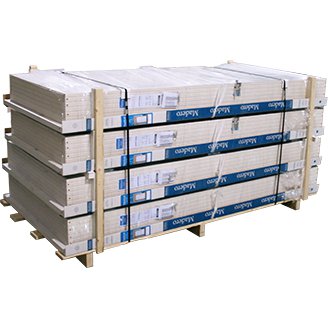

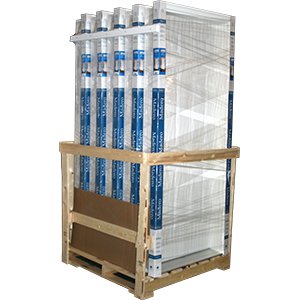

Packaging: Blue corner protectors; Individually shrinkwrapped with installation instructions and screws included.
Rough Opening: For 6'8" Height:
- 2'8" Width: 34-7/16" x 82-1/8"
- 2'10" Width: 36-7/16" x 82-1/8"
- 3'0" Width: 38-7/16" x 82-1/8"
Warranty: Five-year limited warranty, contingent on painting all sides of door and frame within 45 days of purchase. Five-year limited warranty on wood frame and components.
Energy Saving Low-E Glass
See infrared image below of two windows during winter conditions, as seen from the inside of a room. The window on the right has a low-e coating while the window on the left doesn't. Warmer temperatures indicate a better insulating window. The second window is cooler because it has a low-emissivity coating, or low-e, as it's known. It is an invisible layer of metal on the glass that acts as an insulator.
Image: LBNL

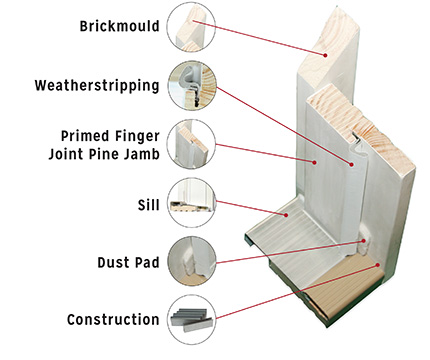

Basic Wood Frame Components
High Definition Steel Door Features
Masonite HD Steel Slab
